Web Applications

Larvaworld provides browser-based applications for simulation setup, environment configuration, experimental dataset import, dataset management, model inspection, and trajectory visualization. The current browser entry point is the Larvaworld Portal, launched with larvaworld-portal.

The portal is built with Panel and the HoloViz/Bokeh stack. It combines workspace-aware workflows, curated landing-page navigation, notebook launch shortcuts, and the established Larvaworld visualization dashboards in one served application.

Launching the Portal

larvaworld-portal

Access: http://localhost:5006

The default port can be overridden with:

LARVAWORLD_PORTAL_PORT=5010 larvaworld-portal

Browser opening can be controlled with:

LARVAWORLD_PORTAL_OPEN_BROWSER=false larvaworld-portal

Stop the server with Ctrl+C.

The legacy dashboard launcher remains available as:

larvaworld-app

Portal Structure

The portal serves multiple Panel applications from a single Bokeh process. The main entry point opens a loading and workspace setup screen, then redirects to the landing page.

Area

App ID / Route

Purpose

Loading / Workspace Setup

/, loading

Initialize the portal and select or initialize a Larvaworld workspace

Landing Page

landing

Browse workflows by user mode and application lane

Notebook Launcher

notebook

Open workflow-specific tutorial notebooks from the portal context

Single Experiment

wf.run_experiment

Configure one Larvaworld experiment run in the browser

Import Experimental Datasets

wf.open_dataset

Discover raw experimental datasets and import one dataset into workspace storage

Dataset Manager

wf.dataset_manager

Browse, inspect, copy paths, refresh, and remove imported workspace datasets

Environment Builder

wf.environment_builder

Build arenas, borders, obstacles, food layouts, and sensory landscapes

Dataset Replay

track_viewer

Replay and inspect larval trajectory datasets

Model Inspector

larva_models

Browse available larva model presets and parameters

Module Inspector

locomotory_modules

Inspect locomotory and sensorimotor module parameters

Workspace-Aware Workflows

The portal uses an active Larvaworld workspace for persistent browser workflows. Workspace-owned artifacts, such as imported datasets and saved environment presets, are stored under the selected workspace.

The workspace setup screen appears before entering the landing page. Once a workspace is selected, portal apps can share a consistent storage location for dataset imports, environment presets, notebook outputs, and other workflow artifacts.

Single Experiment

Purpose: Configure one Larvaworld experiment run from the browser.

Features:

  • Select an experiment template from the Larvaworld registry

  • Adjust key run settings such as duration and larvae-per-group override

  • Apply a workspace environment preset or use the template default

  • Preview arena and environment configuration before running

Access: wf.run_experiment

Environment Builder

Purpose: Build reusable environment presets for experiments and simulations.

Features:

  • Configure arena geometry and dimensions

  • Add borders, obstacles, and other spatial structures

  • Define food layouts and source distributions

  • Configure odor, wind, and thermal landscapes

  • Save environment presets for reuse from the active workspace

Access: wf.environment_builder

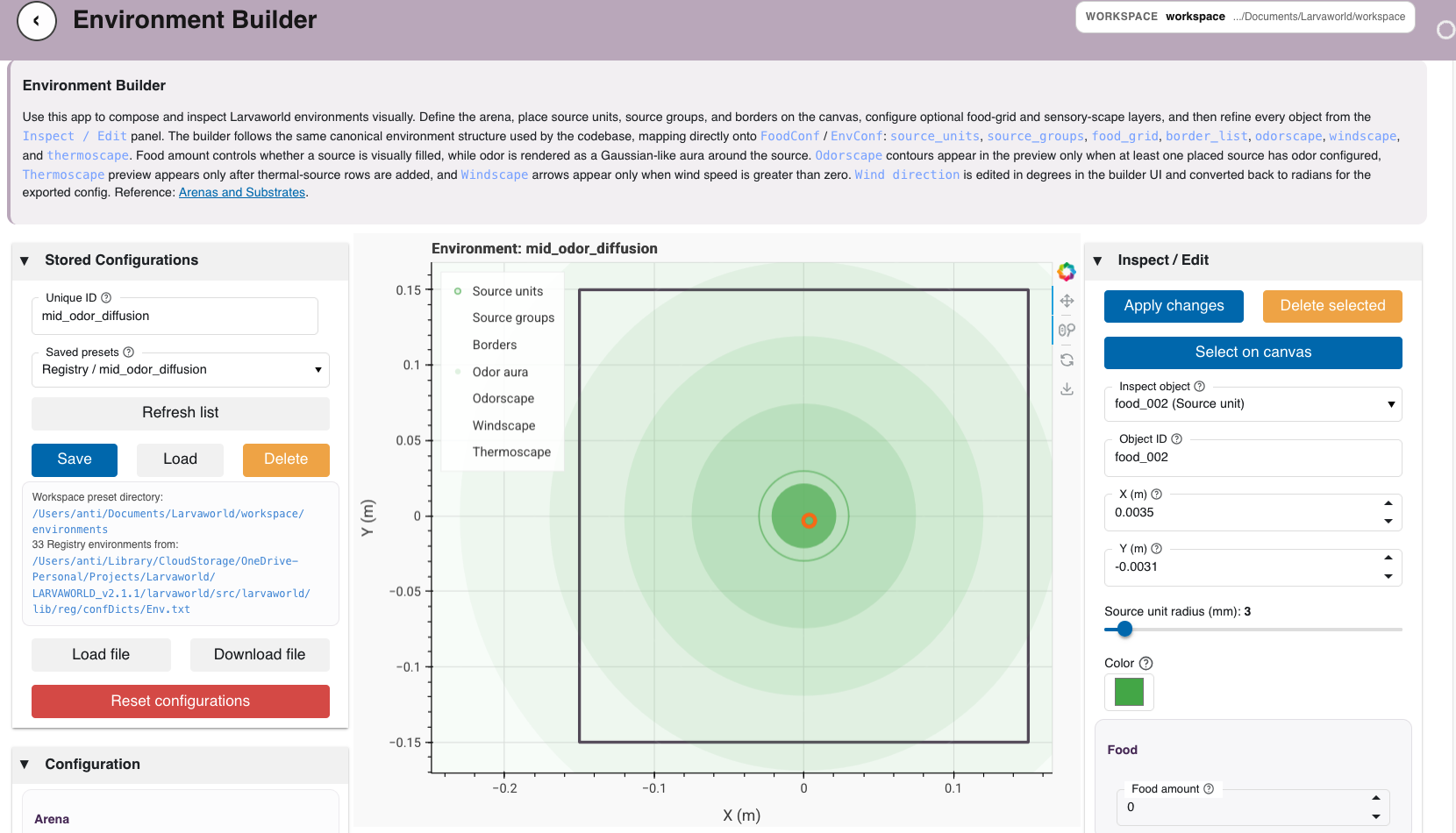

Environment Builder

Figure: Larvaworld Portal Environment Builder with arena, food, border, and scape configuration controls.

Import Experimental Datasets

Purpose: Import one raw experimental dataset into workspace-owned storage.

Features:

  • Select a stored LabFormat configuration

  • Inspect and edit tracker, filesystem, preprocessing, and environment settings

  • Choose or browse to a raw-data root

  • Discover candidate raw datasets from the selected source

  • Import one selected candidate through the central Larvaworld import backend

  • Save the imported dataset under the active workspace

Access: wf.open_dataset

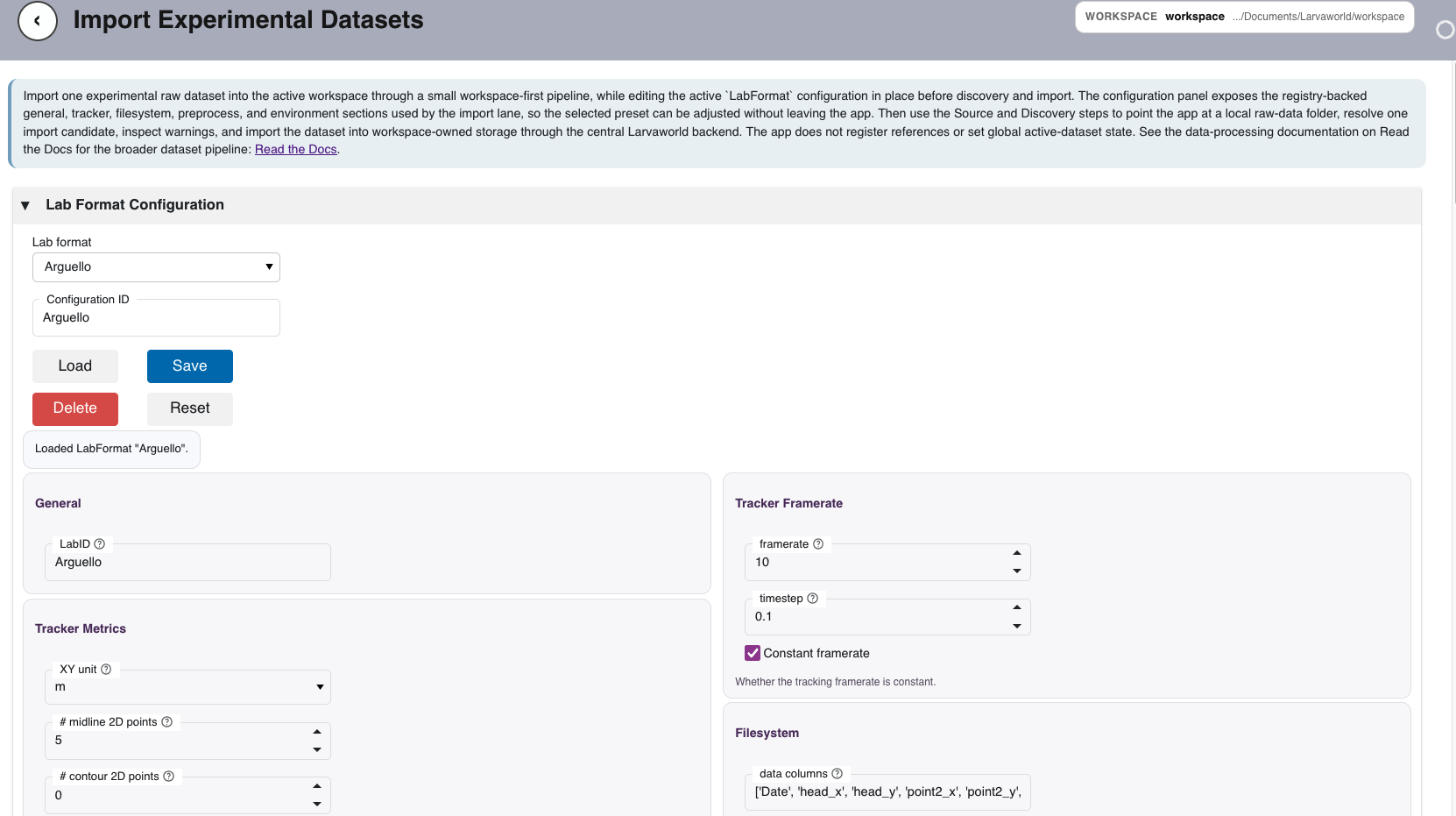

Import Experimental Datasets

Figure: Import Experimental Datasets workflow with LabFormat configuration, source selection, discovery, and workspace import controls.

Dataset Manager

Purpose: Browse and manage imported datasets stored in the active workspace.

Features:

  • List workspace-imported datasets as lightweight records

  • Search and filter the imported dataset catalog

  • Inspect dataset IDs, lab IDs, group IDs, reference IDs, and agent counts

  • View paths to the dataset directory, conf.txt, and data.h5

  • Copy dataset paths and remove imported datasets from workspace storage

Access: wf.dataset_manager

Dataset Replay

Purpose: Replay larval trajectories frame by frame.

Features:

  • Inspect trajectory geometry and motion quality

  • Step through movement over time

  • Compare individuals within a dataset

  • Use the established Larvaworld replay dashboard from the portal

Access: track_viewer

Model Inspector

Purpose: Explore larva model presets and model parameters.

Features:

  • Browse available model configurations

  • Edit baseline locomotor module parameters in-session (not persisted)

  • Inspect optional configured feeder/sensor/memory modules

  • Run and pause a live locomotor preview

  • View live reporter plots for A_T and A_C when available

  • Compare model presets as a supplemental view

Access: larva_models

Module Inspector

Purpose: Inspect behavioral and locomotory modules.

Features:

  • Browse locomotory and sensorimotor module settings

  • Inspect module parameters and roles

  • Review how modules contribute to larval control

Access: locomotory_modules

Legacy Dashboard Launcher

The larvaworld-app command serves the established dashboard collection directly. These dashboards are also available through the portal routes where they are part of the landing registry.

Dashboard

App ID

Purpose

Experiment Viewer

experiment_viewer

View experiment results interactively

Track Viewer

track_viewer

Inspect trajectories

Model Inspector

larva_models

Explore locomotory models

Module Inspector

locomotory_modules

Inspect behavioral modules

Lateral Oscillator

lateral_oscillator

Visualize the neural oscillator module

Web App Architecture

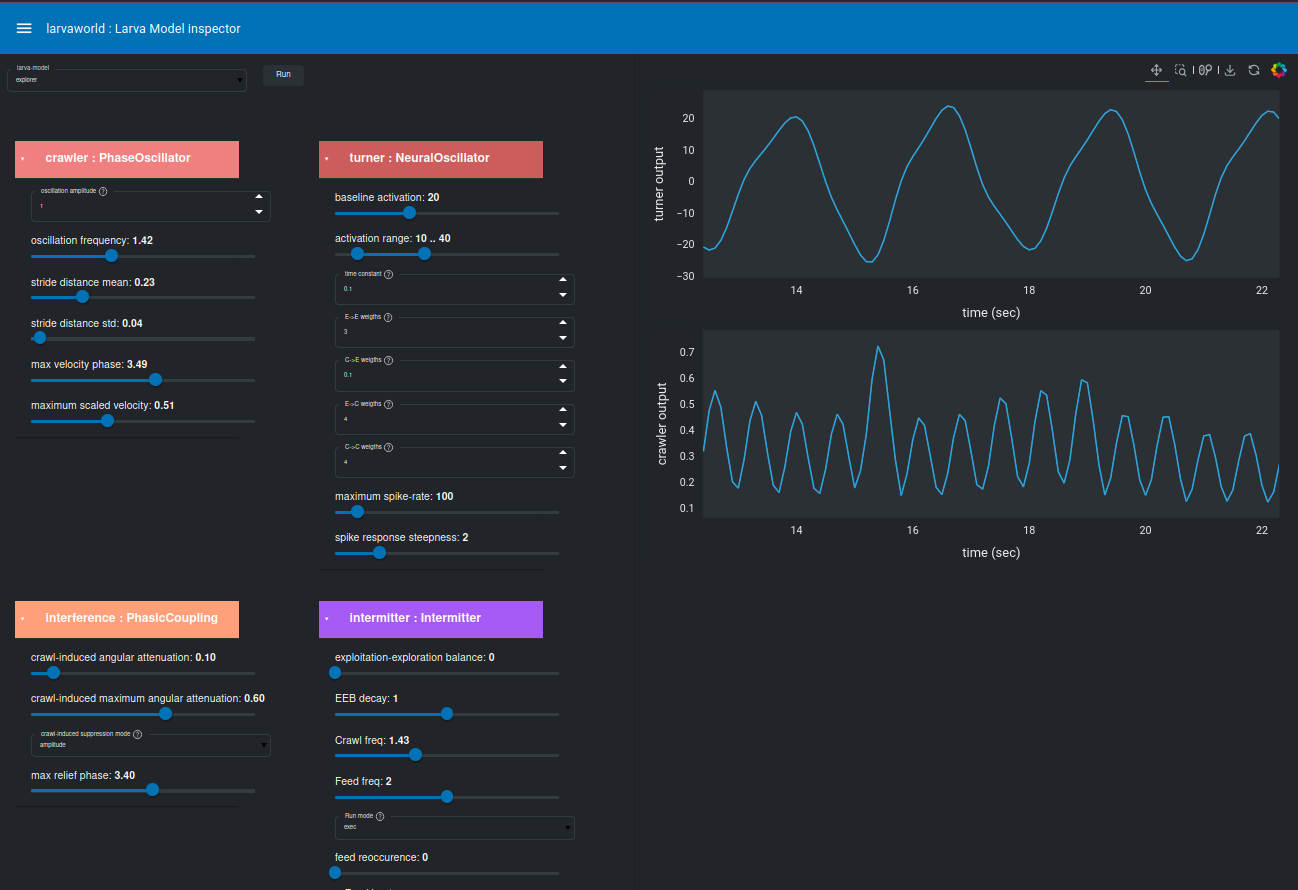

Web App

Figure: Larvaworld web application architecture showing interactive visualization and control panels.

The portal keeps the browser UI separated from core Larvaworld model, registry, and dataset functionality. App controllers orchestrate existing backend functions and configuration classes, while persistent workflow artifacts are written to the active workspace.

The main architecture layers are:

  • Portal server: maps route IDs to lazily loaded Panel app factories

  • Landing registry: defines application metadata, lanes, quick-start modes, documentation links, and notebook shortcuts

  • Workspace layer: stores portal-owned artifacts under the selected workspace

  • Dataset lane: discovers raw datasets, imports them into the workspace, and lists imported dataset records

  • Configuration widgets: expose reusable editors for Larvaworld param.Parameterized configuration classes

  • Legacy dashboards: remain available for established replay, model, module, and oscillator inspection views
